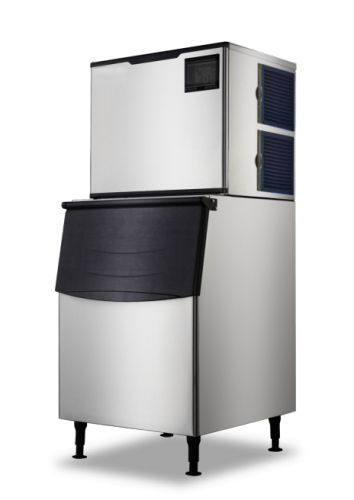

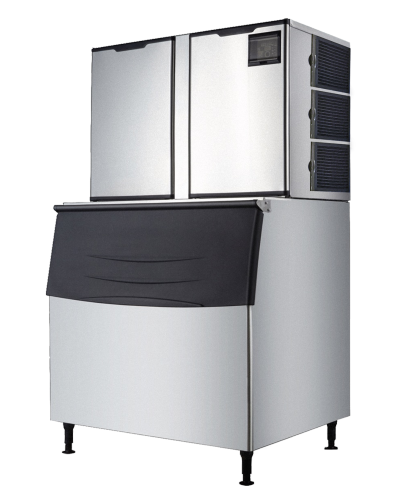

Cube Ice Machine
· Exquisite Sheet Metal Craftsmanship,the frame structure is riveted without welding
· Whole machine is used with 304 stainless steel and some parts are used with 316 stainless steel
· Import Advanced Famous Parts in the world,Cubigel compressor for vertical model,Danfoss expansion valve from Denmark
· Anticorrosive chemical nickel plated evaporator,Eltek water inlet valve from Italy
· Digital control panel with fault code remind and ice thickness adjust function
· Both side air filter design is easy for cleaning and changing
· Environmental Friendly Food Grade Materials : ABS & PE
Modular Type - Classic
Model |
IM-1500P |
IM-2000P |
lce Production |
680kg /24h |
900kg /24h |
lce Storage |
350 kg |
350 kg |
Voltage |
220V/1P |
380V/3P |
Power |
3400 w |
6200 w |
Gross Weight |
220 kg |
270 kg |
Dimension |
1262×965×1927 mm |
1262×965×2057 mm |
Packing Size |
1360×765×725mm |
1360×765×865mm |
